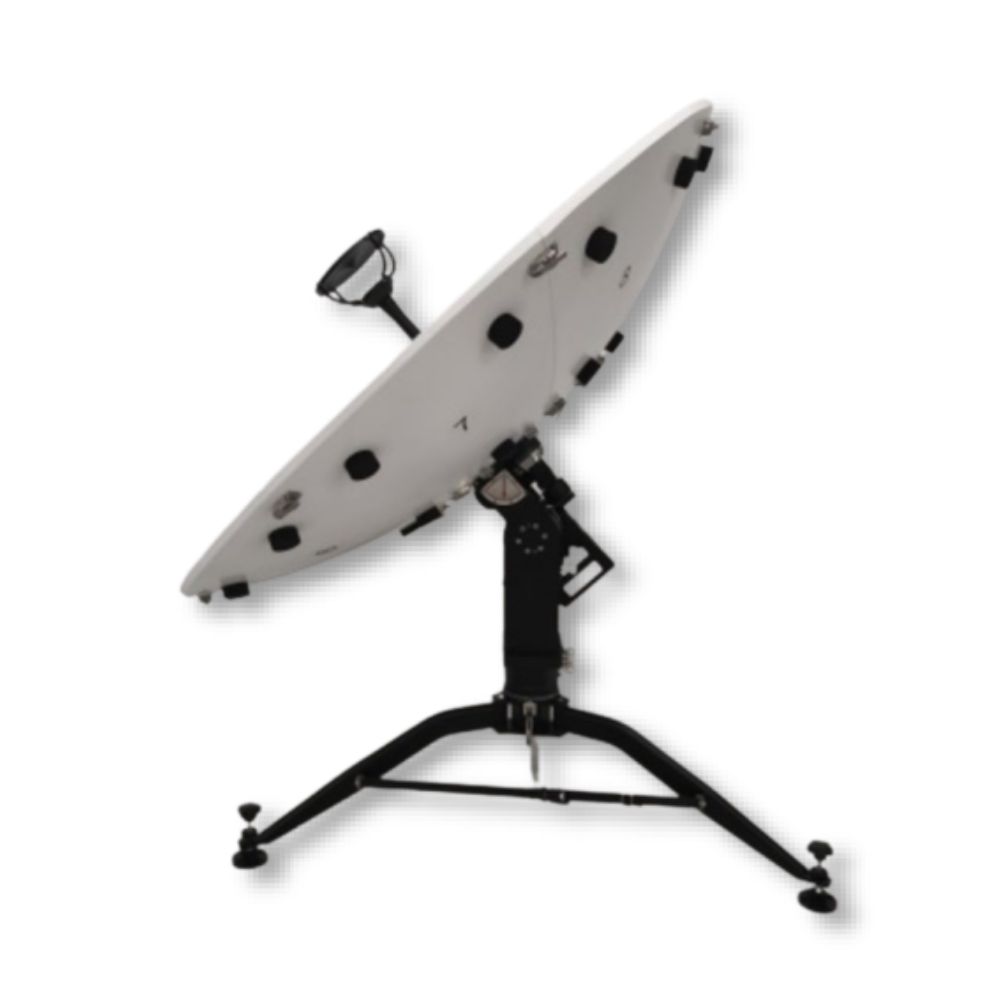

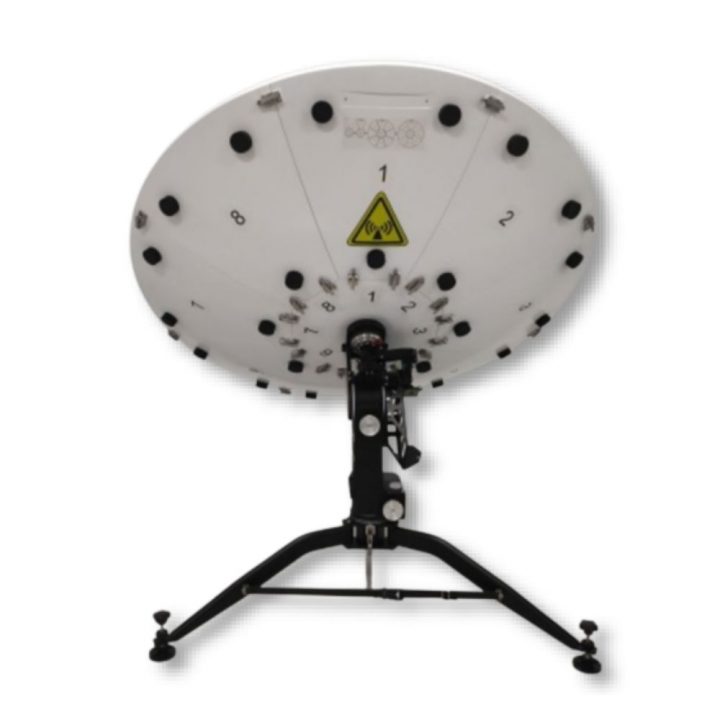

SpaceBridge SBMP100 Series 1.0m X, Ku and Ka-band Manpack Antennas

Product Overview
These 1m rugged, lightweight and compact manpack antennas are suitable for the most demanding and mission critical applications.

Available in three bands: X, Ku and Ka-band

Benifit
*Can be carried and transported by one or two people on foot through rough terrain
*Mechanically resistant, can be transported and deployed under harsh conditions
*Easy to assemble, deploy and disassemble, store
*Easy operation, fast deployment
*Can be integrated to any ground network connectivity solution

Features
*Carbon fiber reflector and supporting system for lighter weight and higher strength​
*Designed and tested to drain rain water, even in the highest elevation angles​
*Hi gain, low sidelobe, complies with MIL-STD-188-164A, ITU-R S.580 requirements​
*Antenna and RF parts can be fit into one backpack​
*Compatible with SpaceBridge ASAT™ and ESTELLA modems​

Aplications and uses

The SBMP100 can connect isolated military tactical units and disaster recovery and public safety teams.

Suitable for use when the following conditions are required:

*Beyond Line Of Sight (BLOS)
*Communications On The Pause (COTP)
*Mobility – can be transported by one or two men on foot, land vehicle, boat, ship, airplane and helicopter

Download specification sheet
SBMP100 1.0m manpack datasheet SBMP100_2024297
