Norsat 3120 PLL Lnb

3120 High Stability PLL C-Band

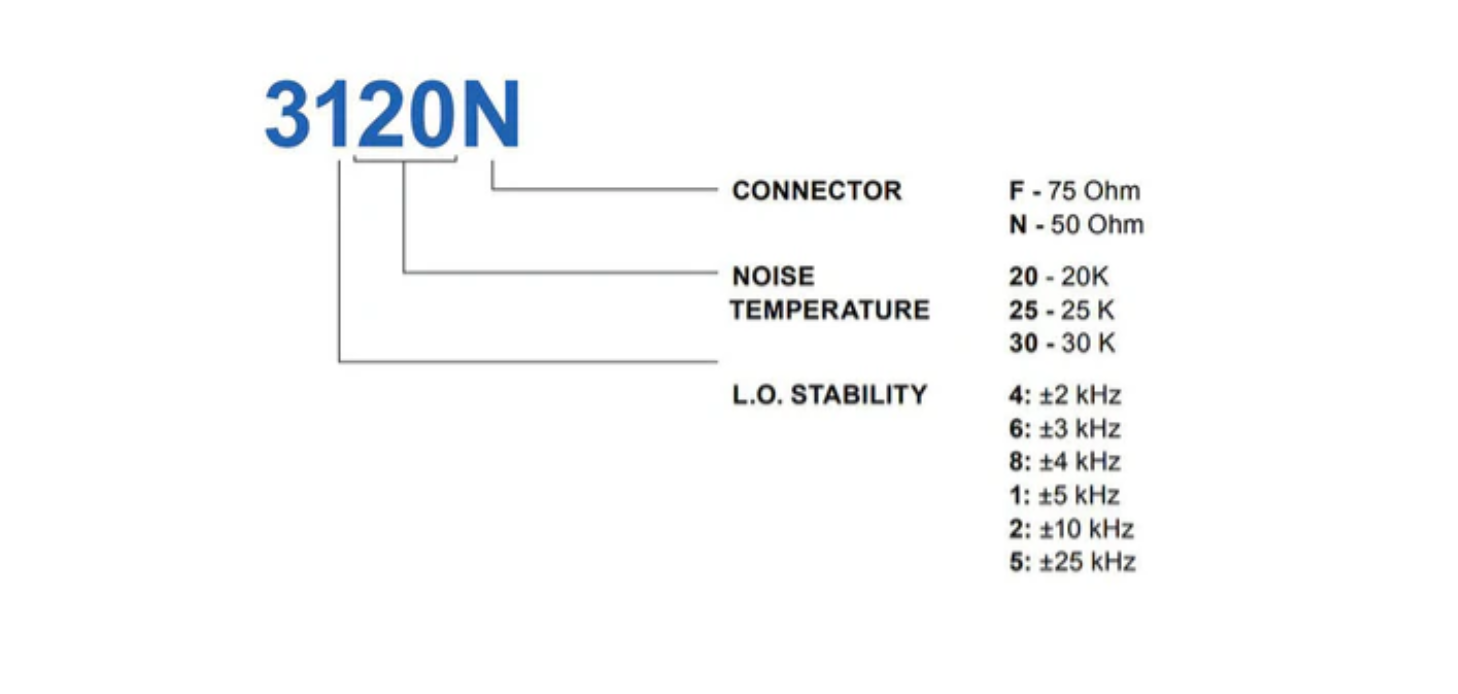

The Norsat 3120CF C-Band PLL LNB has a local oscillator frequency of 5.15 GHz and operates from 3.625 to 4.20 GHz. The 3120CF LNB offers a 20K noise temperature configuration. This high-stability Norsat PLL C-band LNB has a CPR229 waveguide input and provides local oscillator stability of ±5 kHz. F-connector, L-Band RF Output 950 – 1750 MHz. Conversion Gain: 62.0 dB

Application
3.625 to 4.2 GHz, VSAT, Tx/Rx, TVRO, Maritime

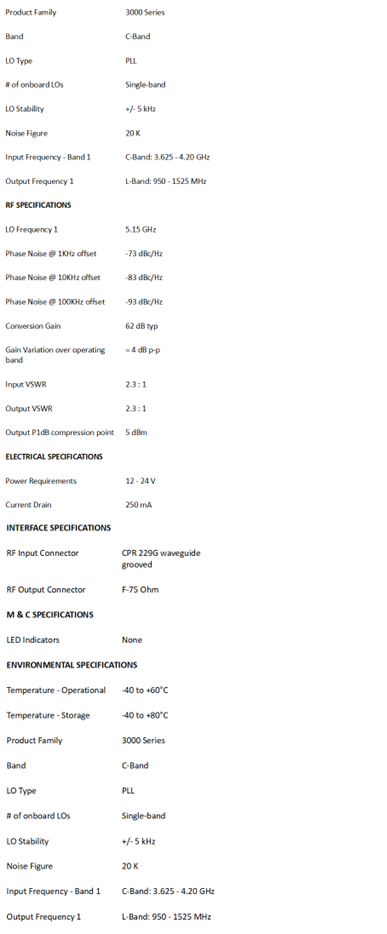

Download specification sheet
3000C-Spec-Sheet
