KA-band Feed-horn 20.2-22.2GHz

Products

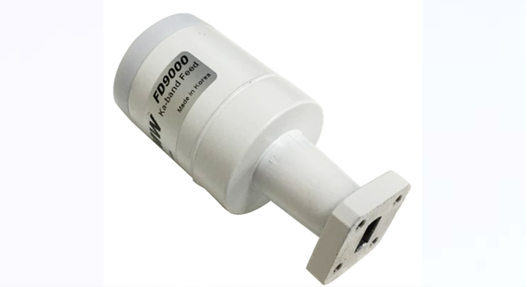

KA-band Single Port Feed-horn 20.20-22.20GHz

Frequency: 20.20-22.20GHz
Input VSWR: 1.5:1
Gain: 15dBi
Gain Flatness: ±1.5dBi
3dB Bandwidth: ±1.5°
Input WG: Circular
Output WG: WR42

Download Technical sheet
FD9000H-Ka-band Feed 20.20-22.20GHz
