SpaceBridge SBMP100 Series 1.0m X, Ku and Ka-band Manpack Antennas
Product Overview
These 1m rugged, lightweight and compact manpack antennas are suitable for the most demanding and mission critical applications.
Available in three bands: X, Ku and Ka-band
Benifit
*Can be carried and transported by one or two people on foot through rough terrain
*Mechanically resistant, can be transported and deployed under harsh conditions
*Easy to assemble, deploy and disassemble, store
*Easy operation, fast deployment
*Can be integrated to any ground network connectivity solution
Features
*Carbon fiber reflector and supporting system for lighter weight and higher strength
*Designed and tested to drain rain water, even in the highest elevation angles
*Hi gain, low sidelobe, complies with MIL-STD-188-164A, ITU-R S.580 requirements
*Antenna and RF parts can be fit into one backpack
*Compatible with SpaceBridge ASAT™ and ESTELLA modems
Aplications and uses
The SBMP100 can connect isolated military tactical units and disaster recovery and public safety teams.
Suitable for use when the following conditions are required:
*Beyond Line Of Sight (BLOS)
*Communications On The Pause (COTP)
*Mobility – can be transported by one or two men on foot, land vehicle, boat, ship, airplane and helicopter
Download specification sheet
SBMP100 1.0m manpack datasheet SBMP100_2024297
1-Meter Carbon Fiber Manual Flyaway
Challenger Quick deploy Ku band dish antenna
Features
2 or 6-Piece Aluminum Reflector Pre-Assembled Tripod or Low Profile Mount w/Pull Pins
C, Ku and Ka Band Feed Systems Available Sturdy Boom Accommodates Outdoor Units
Adjustable Feet for Uneven Surfaces Optional Lightweight Cases for Easy Transportation
Azimuth and Elevation Hand Crank 10 Minute Setup, No Tools Needed
Description

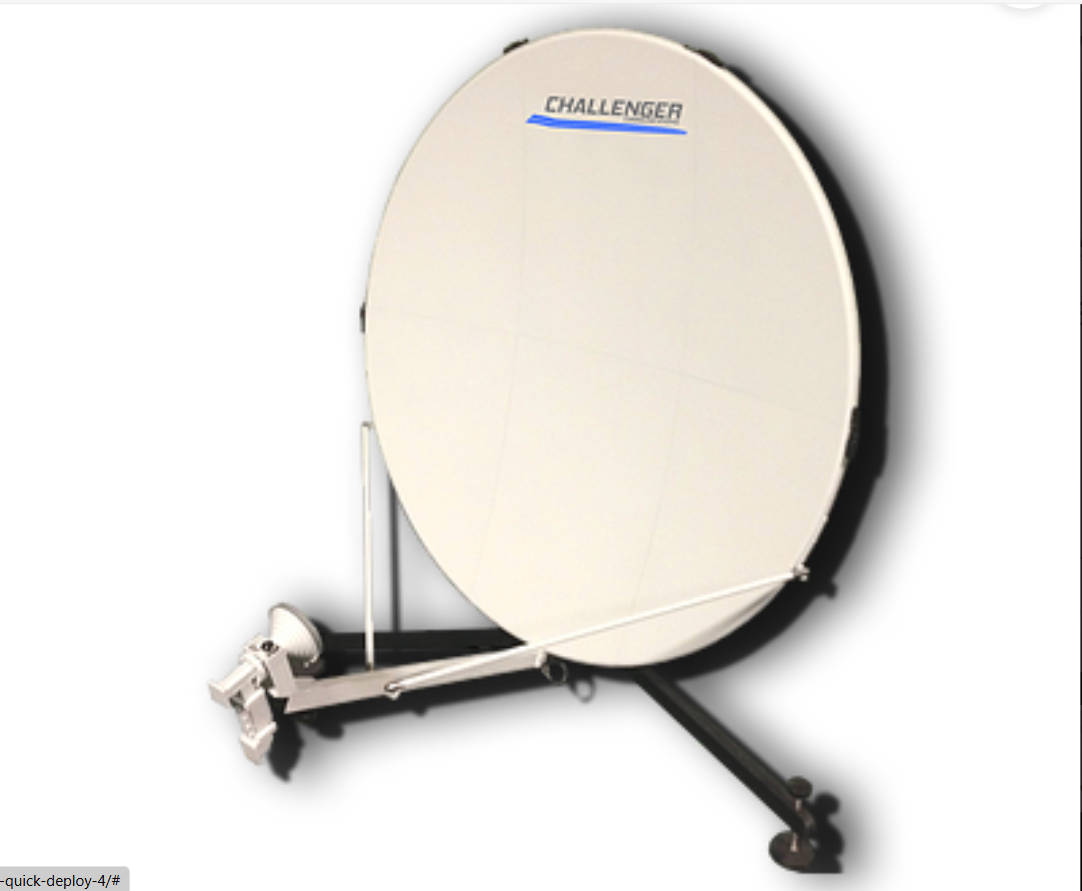

The Challenger Communications 1.0 Meter Quick-Deploy Antenna System
incorporates precision assembled reflector panels with our rugged Antenna Armor™ backing structure.
To ensure quality and performance, Challenger panels are inspected for R.M.S.
accuracy using the latest in laser measurement techniques.
All reflectors and mounts are produced from high-quality materials and are made in the USA.
1.0m Quick-Deploy Antenna System 6-piece reflector with low profile mount depicted
1-Meter Carbon Fiber Manual Flyaway Antenna
Quick deploy Ku band dish antenna
1-meter Ku Band Flyaway Antenna Description
1-meter carbon fiber flyway manual antenna is specially designed for highly portable
antenna by adopting carbon fiber material with light weight and can be assembled in less
than 5 minutes by one person. It can provide users exceptional performance in high gain
and low sidelobe.
Features
Carbon fiber antenna reflector with light weight, high precision and high efficiency,
corrosion resistance and other characteristics, it ensured the antenna in the normal
operation under harsh environments to the greatest degree.
Compact structure, Lightweight, portable, rapid deployment, high performance, a
person can install within 5 minutes, available in airline baggage.
The latest design of the Ku-band satellite antenna, being compact and robust, cost
effective can be used in fast and reliable satellite communications.
Designed specifically for field use, regardless of when and where, it can quickly transfer
high-quality broadband content.
1-Meter Carbon Fiber Manual Flyaway Cassegrain dish antenna
Quick deploy Ku band dish antenna
1-meter manual flyaway antenna is specially designed for highly portable antenna by adopting carbon fiber material with light weight and can be assembled in less than 5 minutes by one person.
It can provide users exceptional performance in high gain and low side lobe
Applications：
Sudden public events and all kinds of disasters on-site information gathering Disaster relief.
Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country
The remote areas and the vast rural areas are out of coverage. Field operations, exploration, military police, and news media.
11-meter KA/KU Band Manual Flyaway Antenna
General specification：
Cassegrain dish antenna Manual flyaway antenna with a
select range of 0.75m, 1.0m, and 1.2m series.
Antenna adopts with splash plate form, which
improves antenna reflection efficiency and achieves antenna better sidelobe in the EHF band.
Antenna reflector material uses carbon fiber material with specially designed processing
and surface treatment technology, which improve reflector surface accuracy (RMS with 0.2 mm) and compressive strength,
meet with Ka band conductivity. Compact design makes antenna with light weight, easy portable, and easy to operate.
Highlight Features：
Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance
and other characteristics, it ensured the antenna in the normal operation under harsh environments in the greatest degree.
Compact structure, Lightweight, portable, rapid deployment, high performance, a person can install and
point to satellite within 5 minutes, available in airline baggage.
Quick feed swap and simplified polarization selection
The latest design of the EHF-band satellite antenna, being compact and robust and cost-effective, can be used
in the fast and reliable satellite communications.
Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content.
Applications：
Sudden public events and all kinds of disasters on-site information gathering Disaster relief.
Public security, military, government, oil, water conservancy, electricity, finance and other important
sectors of the country
The remote areas and the vast rural areas out of coverage. Field operations, exploration, military police
and news media.
Components：
Ring-Focus Sputtering Plate Antenna
Azimuth & elevation turntable
Portable case
Compass & leveling
1-Meter Carbon Fiber Manual Flyaway Antenna
Quick deploy Ku band dish antenna
1-meter Automatic Flyaway Antenna
Carbon fiber material, more stable, lighter in weight and better in strength
Convenient for portable use
Low side lobes and high gain, meeting the network access technical requirements of major satellite companies
Introduction：
Advantages:
● The material of antenna is more stable, lighter in weight and higher in strength, which is more convenient for portable use
● Highly reliable control system: the antenna control system is developed based on the embedded system by using mature development
platform.
● Operability: under the fully automatic mode, the system is able to align with the target satellite by one click, and under special working conditions, it can be operated semi-automatically or fully manually if its power supply is off.
Applications：
● It can be used for governments as emergency communication and wartime communication.
● The flyaway antenna is important communication equipment when people do field scientific investigation.
● It can be used for sudden public events and all kinds of disasters on-site information gathering.
● It can be used for public security, governments, oil, water conservancy, electricity, and other important sectors of the country.
Hot Tags: 1.0m automatic flyaway antenna, manufacturers, suppliers, producers, design, customized, development, satellite, advanced, 0 8m Ku Flyaway Antenna With Motorized, Smart City, 1-8m FlyAway Antenna, 1 0m Automatic Flyaway Antenna, 2 4m Fly Away Antenna, Special Antennas
1-Meter Carbon Fiber Manual Flyaway Antenna
Quick deploy Ku band dish antenna
Antenna aperture:1-meter
Feed type: Offset antenna
Surface accuracy (RMS): ≤0.35 mm
Panel QTY: 6 pieces
Panel material: Carbon fiber
Azimuth travel: 360°
Elevation travel: 5° ~ 90°
Polarization travel: ±90°
Drive mode: Manual
Antenna net weight: 14kg
Dial: There are dials for azimuthelevation and polarization
Characteristic:
◆Standardized, modular, universal, and integrated design;
◆Carbon fiber reflector, lightweight, and stable performance;
◆High gain and low sidelobe;
◆Quickly installation and disassembly;
◆Multiple working modes and quick switching;
◆Excellent structure design, reliable quality, high wind and
corrosion resistance;
◆Single panel RMS≤ 0.15mm, overall reflector RMS≤ 0.30mm
Description
The 1 meter antenna is suitable for KU band satellite communication and is widely used in defense security, government emergency communications departments, telecommunications operators, news media, public security, border defense, armed police, military, scientific expeditions, and other fields.
1-meter manual flyaway antenna characteristics
Meets or exceeds CCIR 580 and INTELSAT requirements;
Meets INTELSAT, ASIASAT, and CHINASAT network access requirements.
Offset designed;
High gain, low sidelobe, High G/T rate;
Hot-dip zinc-processed Antenna mount with strong corrosion-resistant ability;
2-port feed;
Reasonable structure and easy operation.
1-meter manual flyaway antenna standard configuration:
Main reflector, feed, feed supporting rods, pedestal, supporting legs, solid wretch, and standard component.
Hard transit case
1-meter manual flyaway antenna optional parts
Frequency: C, X, Ku, Ka band is available for customizing and
optional
Port: 2 ports;
Polarization: linear or circular;
Operation mode: manual;
Antenna type: offset;
Color: white, green or as per request;
Standard configuration: reflector, feed, tripod, base, transit case;
Option:: BUC, LNB, Modem.

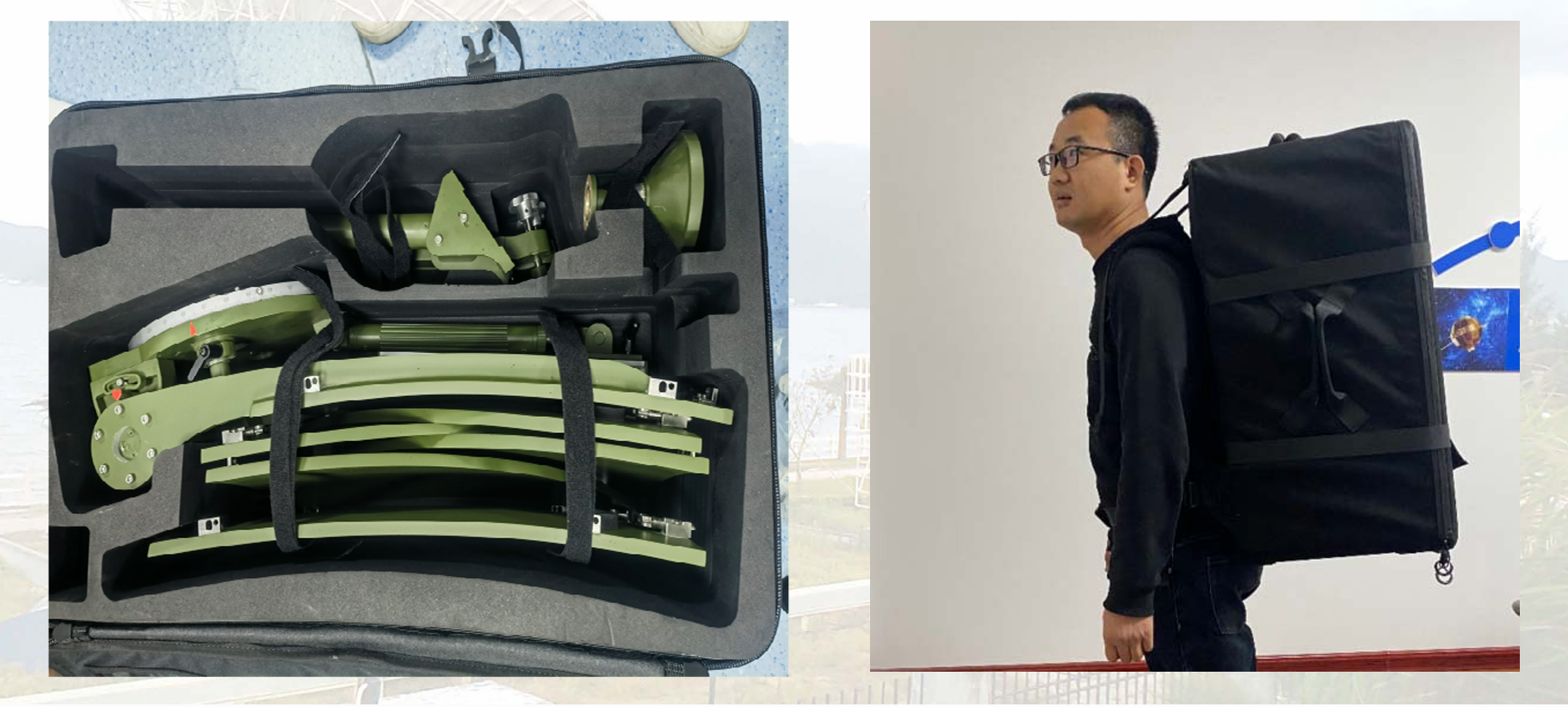

Backpack
1.0 Meter Flyaway Ku band Antenna
Quick deploy Ku band dish antenna
X-Band(Military/WGS), Ka-Band Option
Description
Type: DH 1.0 Meter QD Ku-band Antenna
1.0 Meter Quick-Deploy Antenna System incorporates precision
assembled reflector panels with our rugged design for the efficient
organization of high-speed communication channels in any place.
To ensure quality and performance, accuracy using the latest in laser
measurement techniques reflector panels are inspected for R.M.S.
The antenna is designed to meet international performance
specifications for commercial or military applications and is readily
available in Ku band frequencies. Multiple feed configurations are
available.
Key Features
● 6-piece carbon fiber folding reflector.
● Pre-Assembled Tripod Base Mount w/Pull Pins.
● Ku and Ka Band Feed Systems Available.
● Sturdy Boom Accommodates Outdoor Units
● Adjustable Feet for Uneven Surfaces.
● Optional lightweight cases for easy transportation.
● 5 Minute Setup, No Tools Needed.
● AZ,EL,Pol.(Coarse & fine adjustment) Angles to be
engraved on the antenna
0.98m Flyaway Ku band dish antennaAntenna
Quick deploy Ku band dish antenna
Meet the requirements of CCIR 580-6 , ASIASAT and INTELSAT
Using the latest carbon fiber composite material for light weight;
Easily and quickly deploy without any tools;
No tools are required during installation, and one person can finish within 5 minutes.
Offset feed design for high gain and excellent side lobe performance;
One case or backpack packed ＜14KG.
Optional aviation package material is available.
0.98M FLYAWAY ANTENNA (CARBON FIBER)
Antenna reflector adopt the design offset type.
Feed horn adopts Corrugated Horn type Superior RF technical for OMT and feed line.
High Gain, Low Sidelobe, Low VSWR.
Conform with CCI 580-4 regulation and meet with the requirements of Asiasat and Intelsat.
Light weight and high strength reflector.
High accuracy and strength reflector.
High integration and easy to disassemble; one person can finish the assembly within 5 minuts.
Turn-key Installation and Testing.
Technical specification of 0.98-m Flyaway Ku band Antenna Manufacturer
1-Meter Carbon Fiber Manual Flyaway Antenna
Quick deploy Ku band dish antenna
Description
Alignsat 1-Meter flyway manual antenna is specially designed for highly portable antenna by adopting
carbon fiber material with light weight and can be assembled in less than 5 minutes by one person. It
can provide users exceptional performance in high gain and low sidelobe.
Features
Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion
resistance and other characteristics, it ensured the antenna in the normal operation under
harsh environment in the greatest degree.
Compact structure, Lightweight, portable, rapid deployment, high performance, a person
can install within 5 minutes, available in airline baggage.
The latest design of the Ku-band satellite antenna, being compact and robust, cost-effective
can be used in fast and reliable satellite communications.
Designed specifically for field use, regardless of when and where, it can quickly transfer
high-quality broadband content.
Applications
Sudden public events and all kinds of disasters on-site information gathering.
Disaster relief.
Public security, military, government, oil, water conservancy, electricity, finance and other
important sectors of the country.
The remote areas and the vast rural areas out of coverage.
Field operations, exploration, military police and news media
