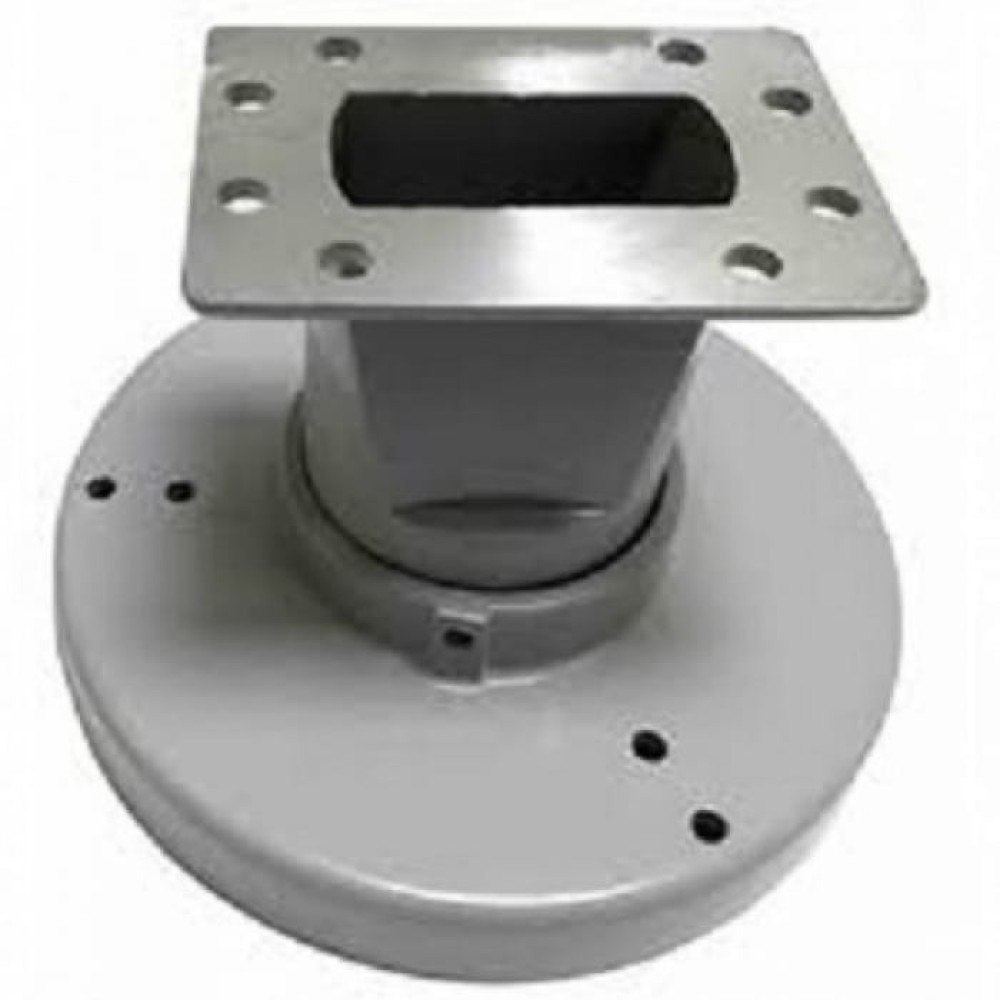

C-band Single Port feed-horn

C-band Single Port feed-horn

Our C-Band Single Polarity Feedhorn can be used for single-polarity reception with a Single-polarity C-Band LNB on prime-focus C-Band dish antenna. The feedhorn has a standard C Band flange that will bolt to any standard C Band LNB. The feedhorn can be fitted to dishes that use either tri or quad-feed arms for support of the LNB and feedhorn.

Description

The Feed is a single-polarity C-Band feedhorn for the reception of linear polarized signals in the 3.3 to 4.2 GHz bandwidth. Superior quality, excellent illumination patterns, and a compact design make the Super Feed the ideal choice in feedhorns for single-polarity systems.

Feed features chip-resistant
powder paint and cast aluminum construction for
added protection against the environment. Built-in the
Chaparral tradition of quality, the Super Feed is the
an ideal choice for reliable performance.
Specifications

C-Band Frequency Range: 3.7-4.2 GHz
f/D Range: 33 to 45
Cross-Pol. Isolation: 25 dB minimum
Output Ports WR 229 compatible
Temperature Range: -40° C to 60° C
