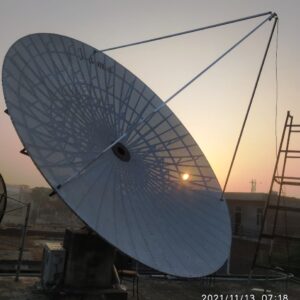

16ft KU band dish antenna
Prime-focus KU band dish antenna
Specification:
| Antenna Size | 16 feet |
| Antenna Type | Parabolic |
| Feed | Prime Focus |
| f/d Ratio | 0.67 |
| Focal Length | 128.64 Inch |
| Penal | Aluminum Punched sheet |
| Mount | AZ / EL |
| Stability | AZ 360 Degree EL to 90 Degrees |
| Double Ribs | 24 |
| Total Ribs | 48 |
| Reflector Material | Aluminum Reinforced with steel |
| Wind load operational | 75 Kmph |
| Survival Wind Speed | 120 Kmph |
| Polarization | Linear & Circular |
| Pointing Accuracy | Better Than +/– 0.2 Deg. |
| Operating Frequency | 10 GHz.–13 GHz. |
| Pointing | Manual |
| Gain | 53 dB at 11 Ghz |
| Approximate Weight. | 250-500 Kg. |
