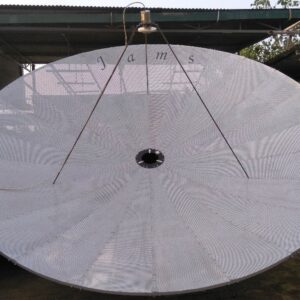

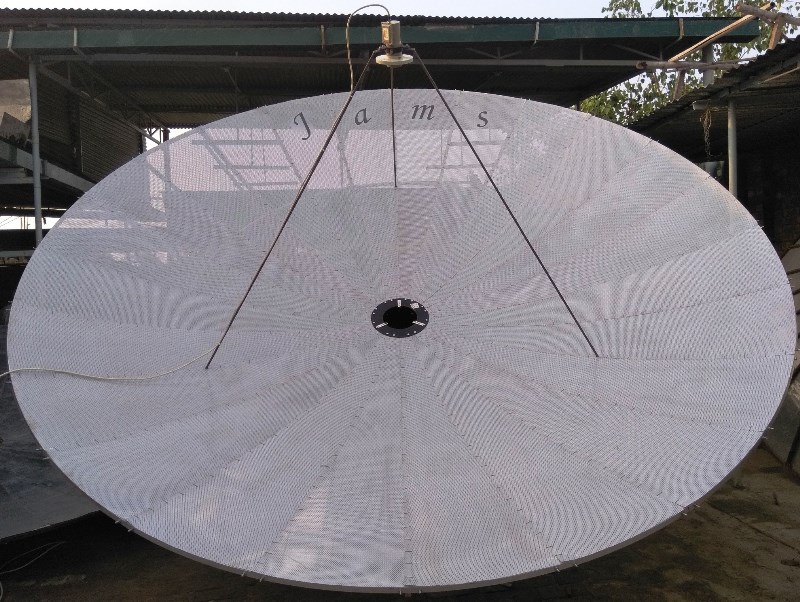

16 ft. C-Band Dish Antenna
16ft C band Dish antenna Full Aluminum
Specification:
| Antenna Size | 16 ft. |
| Antenna Type | Parabolic |
| Feed | Prime Focus |
| f/d Ratio | 0.40 |
| Focal Length | 76.80 Inch |
| Penal | Aluminum Punched Sheet |
| Mount | AZ / EL |
| Stability | AZ 360 Degree EL to 90 Degrees |
| Double Ribs | 16 |
| Total Ribs | 48 |
| Reflector Material | Aluminum Alloy |
| Wind load operational | 75 Kmph |
| Survival Wind Speed | 120 Kmph |
| Polarization | Linear & Circular |
| Pointing Accuracy | Better Than + / – 0.2 Deg. |
| Operating Frequency | 3.4 GHz. – 5 GHz. |
| Pointing | Manual |
| Gain | 44.33 dB at 4 GHz |
| Approximate Weight. | 250 Kg. |
