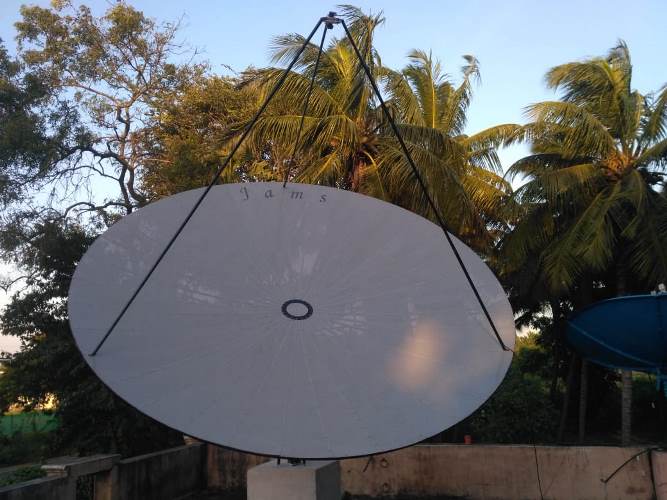

14ft Ku/Ka band Dish antenna
4.25 meter Ku/Ka band Prime focus Dish Antenna
Specification:
| Antenna Size | 14 ft. |
| Antenna Type | Parabolic |
| Feed | Prime Focus |
| f/d Ratio | 0.67 |
| Focal Length | 112.56 Inch |
| Penal | Aluminum Solid Sheet |
| Mount | AZ / EL |
| Stability | AZ 360 Degree EL to 90 Degrees |
| Double Ribs | 18 |
| Total Ribs | 36 |
| Reflector Material | Aluminum Reinforced with steel |
| Wind load operational | 75 Kmph |
| Survival Wind Speed | 120 Kmph |
| Polarization | Linear & Circular |
| Pointing Accuracy | Better Than + / – 0.2 Deg. |
| Operating Frequency | 10 GHz. – 22 GHz. |
| Pointing | Manual |
| Gain at 12000 GHz | at 50% efficiency = 88.66 dBi |
| Approximate Weight. | 200 Kgs. |
