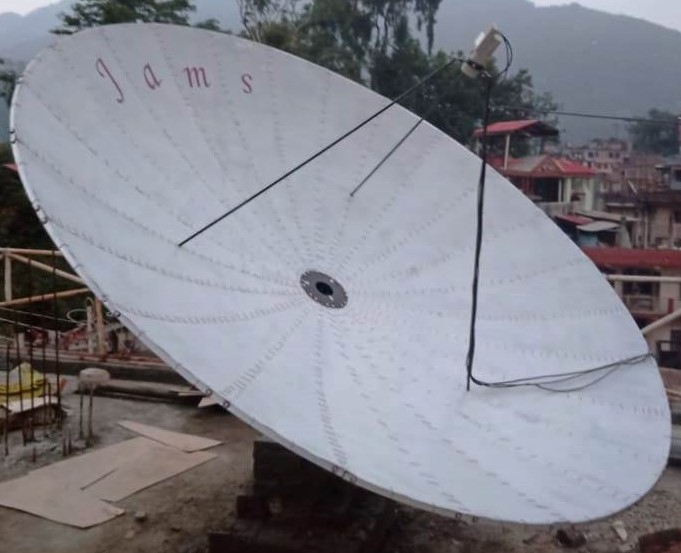

10ft. C-Band Dish antenna
Specification:
| Antenna Size | 10 ft. |
| Antenna Type | Folding |
| Feed | Prime Focus |
| F/D Ratio | 0.4 |
| Focal Length | 48 Inches |
| Penal | Aluminum Mesh Punched Sheet |
| Mount | AZ / EL |
| Stability | AZ 360 Degree EL to 90 Degrees |
| Total Ribs | 24 |
| Dual Ribs | 8 |
| Reflector Material | Fully Aluminum |
| Wind load operational | 75 Kmph |
| Survival Wind Speed | 120 Kmph |
| Polarization | Linear & Circular |
| Pointing Accuracy | Better Than + / – 0.2 Deg. |
| Operating Frequency | 3.4 GHz. – 13 GHz. |
| Pointing | Manual |
| Gain at 4 GHz | at 50% efficiency = 39.12 dBi |
| Approximate Weight. | 45 Kg. |
