10 MHz Oscillator with Diplexer

10 MHz Oscillator with Diplexer / DC inserter L-Band
Diplexer for insertion of 10 MHz and DC with bypass of 22 kHz

• For LNB and BUC
• L-Band and 22 kHz bypass
• Low power consumption

The Swedish Microwave 10 MHz Reference Oscillator is used for improved stability of the local oscillator in LNB or BUC.

Available with F-, N-, or SMA connectors. DC, L-Band, and 22 kHz bypass is standard. Options include separate DC power input via connector (F, N, or SMA) or via cable (pigtail) and 2nd 10 MHz output.

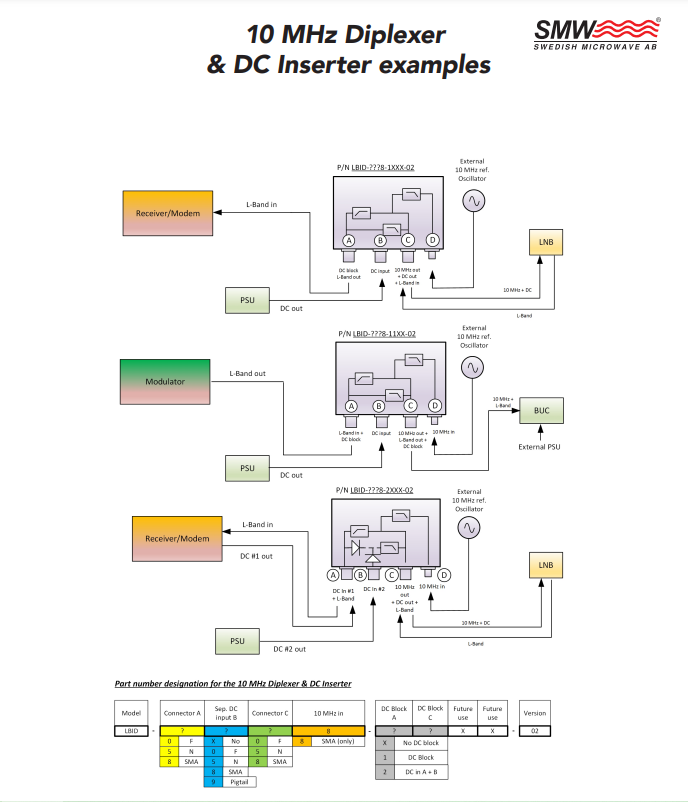

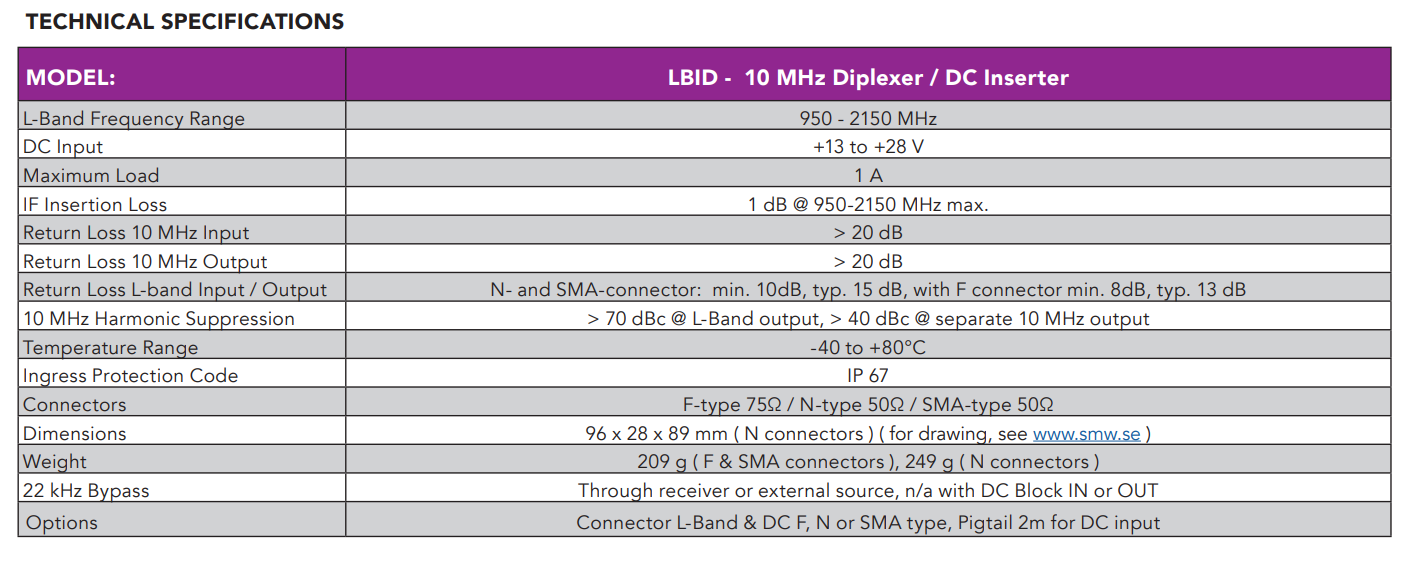

TECHNICAL SPECIFICATIONS
MODEL: LBID – 10 MHz Diplexer / DC Inserter
L-Band Frequency Range: 950 – 2150 MHz
DC Input: +13 to +28 V
Maximum Load: 1 A
IF Insertion Loss: 1 dB @ 950-2150 MHz max.
Return Loss: 10 MHz Input > 20 dB
Return Loss: 10 MHz Output > 20 dB
Return Loss: L-band Input / Output N- and SMA-connector: min. 10dB, typ. 15 dB, with F connector min. 8dB, typ. 13 dB
10 MHz Harmonic Suppression > 70 dBc @ L-Band output, > 40 dBc @ separate 10 MHz output
Temperature Range: -40 to +80°C
Ingress Protection Code: IP 67
Connectors: F-type 75Ω / N-type 50Ω / SMA-type 50Ω
Dimensions: 96 x 28 x 89 mm ( N connectors ) ( for drawing, see www.smw.se )
Weight: 209 g ( F & SMA connectors ), 249 g ( N connectors )
22 kHz Bypass Through receiver or external source, n/a with DC Block IN or OUT
Options Connector: L-Band & DC F, N or SMA type, Pigtail 2m for DC input

Download Technical document
